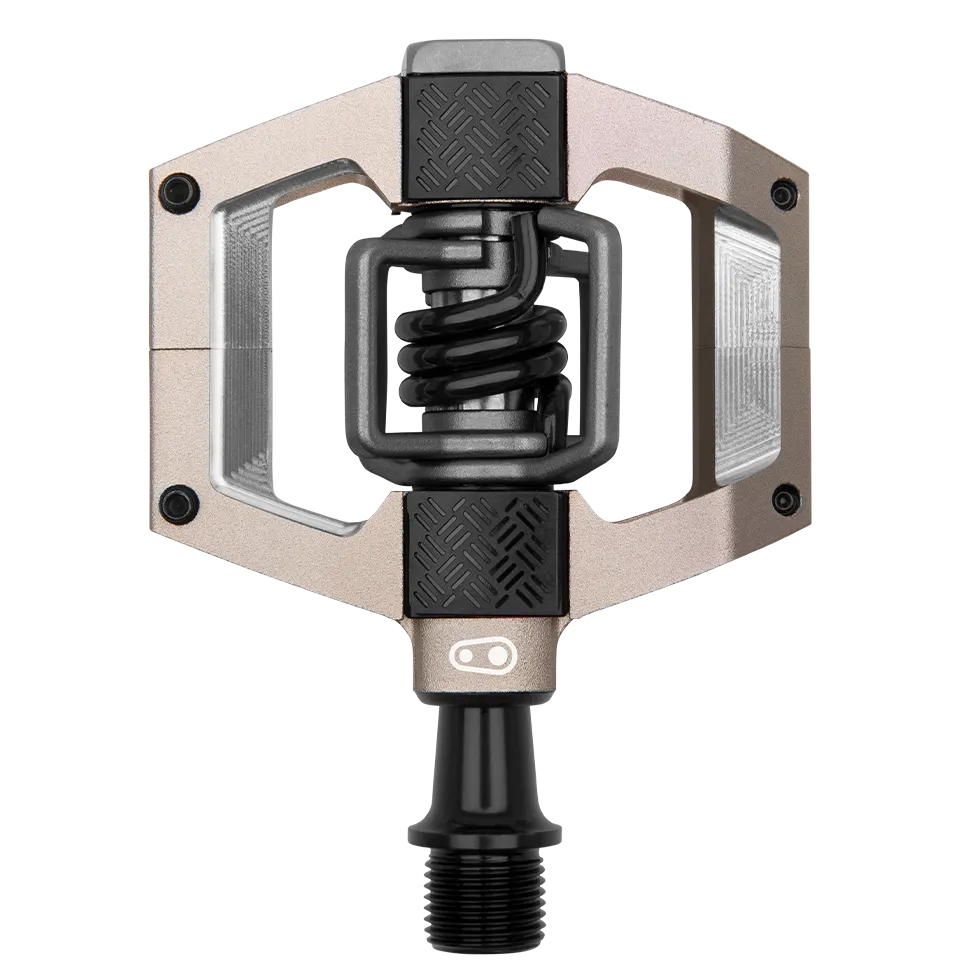

Full suspension or entirely rigid, upon a mountain top or deep in the woods, it’s up to you to define your trail. Our new Mallet Trail pedal fills the missing piece in our clip-in range, sitting perfectly between our Candy and Mallet E pedals. Equipped with a long spindle for stability and speed, two adjustable pins per side for added traction, and our eggbeater system with 4-sided entry and superior mud shedding, the Mallet Trail is ready to join you on your next adventure.
FEATURES
SPECS
FEATURES:
- Optimized platform size and surface for trail/gravel riding
- Long spindle, 57mm q-factor for more shoe clearance and stability at speed
- Integrated traction pad technology to customize and optimize the shoe/pedal interface
- 2 adjustable pins per side for grip
- Hex alloy endcap for durability
- 4-sided entry / superior mud shedding
- Customizable float & release angle
- Owner's manual and technical documents
SPECS:
- Body Material: 6061-T6 Aluminum
- Body Dimensions (L X W): 78mm x 74mm
- Wing Material: 17-4PH Stainless
- Spindle Length: 57mm
- Traction Pins 2 adjustable per side
- Pin Length: 8mm
- Inner Bearing Type: Igus LL-glide bearing
- Outer Bearing Type: Enduro MAX cartridge bearing
- Endcap: Hex alloy
- Spindle Material: Forged SCM 435 Chromoly Steel
- Spring Material: 300 series stainless steel
- MAX Rider Weight: No restriction
- Approximate Weight: 344g per pair
- Included Cleat Type: 15° / 20° Standard Release, 6° Float
- CLEAT NOTICE: Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
- Warranty: 5 years
